What is Commercial RO Plant in Detail and How does it works?
Drinking Water Problem In Noida
Noida is a fast-growing city in India. Noida is the short name of the New Okhla Industrial Development Area which is the hub of IT sectors and Media Platforms the 2nd largest mall and the famous hospital are located in Noida. It has better connectivity with Delhi and other states, due to these circumstances Noida has a huge population. Noida is the part of NCR
This large population faces to accesses the purified drinking water in Noida.The government and other NGOs cannot now fulfill these quality water demands.
To fulfill the high demands for clean water by various sectors like hotels, housing societies, and industries, we should set up a Large-scale RO plant, which will help to produce continuous Purified water.
What Is Commercial RO Plant?
Commercial Reverse Osmosis Plant is a water purification system that is designed for large-scale or commercial purposes to purify the water. This system truly works on reverse osmosis technology to remove impurities, contaminants, and other dissolved solids from water & produce high-quality purified water that fulfills the demands of various sectors like commercial, industrial, and healthcare, etc.
Working Processes of Commercial RO Plant:
The water purification process goes through several steps using reverse osmosis technology in the commercial RO plant. Let's understand the working process in detail:
1. Raw Water Intake:Raw water is collected through different kinds of sources like municipal, wells, lakes, rivers, and other water saviors. This process may involve pump or gravitational forces.
2. Pre-Treatment:The raw water goes through the pre-treatment process which involves sedimentation, filtration, and adding chemical coagulation, that helps to remove large molecules, suspended solids, contaminants, and impurities from water.
3. Chemical Dosing:In the process of chemical dosing, anantiscalant ispushed into the raw water which prevents the precipitation of chemical forming such as calcium, and magnesium. It prevents from scaling of membranes and provides long-term efficiency.
4. Filtration: The filtration has two parts –

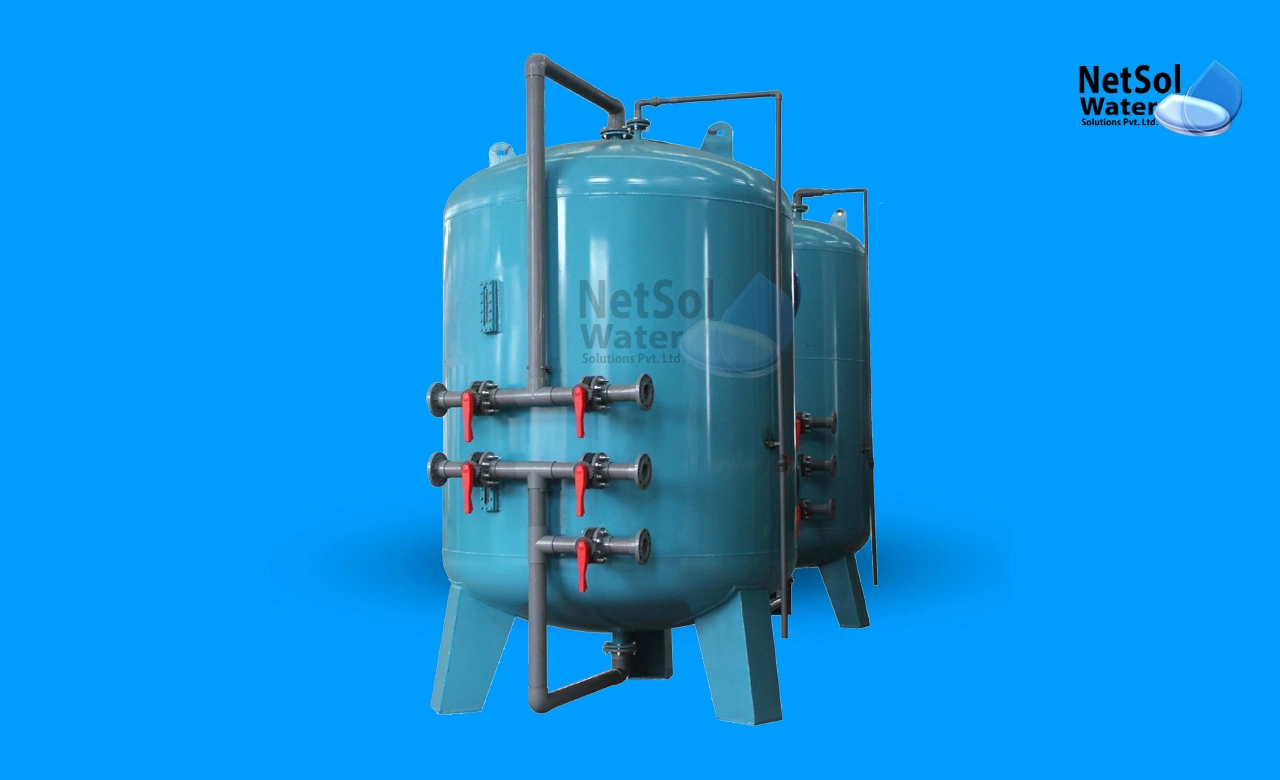

Sand-Filtration:The primary purpose of sand-filtration is to remove larger particles & impurities from water before entering the RO membrane. It is an important process because membranes are very sensitive and can be easily damaged or clogged by this type of impurities.
Carbon-Filtration:This process has its important because of the working process. The activated carbon filter is made with such material and has a large-scale area that helps to adsorb impurities,organic compounds, and chlorine from water, also enhancing the taste and quality of water.
First Pass Reverse Osmosis:The first pass reverse osmosis involves three steps-
High-Pressure Pump:High-pressure plays an important role in the water purification system. Reverse-osmosis works on membrane technology
Which follows the membrane technology, it helps to remove impurities from water.
· High-pressure pump in RO technology helps to pressurize the feed water or untreated water, by increasing the pressure on the water the pump facilitates the movement of water molecules through a semi-permeable membrane.
1· Semi-permeable membrane: The semi-permeable membrane is the main part of the RO system, that allows to passingof only water molecules while rejecting the impurities, and contaminants from water.
2· The rejected impurities form a concentrated brine stream that is discharged.
3· Permeate Collection: The purified water is known as permeate water which is stored on the other side of the membrane.
4· The permeate water quality is higher and has a significant reduction in total dissolved solids.
Post-Treatment: The post-treatment method has two processes-
1· Ph-adjustment:in the process of pH adjustment,chemicals are added to treated water to get the desired level of standard.
2· pH adjustment process is important to ensure water compactibility and its safe uses.
3· Disinfection: The disinfection process is required to remove the remaining impurities from water by using chlorination and UV disinfection.
Monitoring & Control:
1· Sensors Integration:Thewater purification system is associated with sophisticated sensors to measure parameters like flow rate, pressure, temperature, and water quality.
2· Monitoring regularly ensures the optimal performance of water quality.
Automated Water Quality:
1· Automated control systems adjust operational parameters based on real-time data.
2· These systems optimize energy consumption, membrane efficiency, and overall plant performance.
3· Storage &Distribution: The treated water is stored in a clean and disinfected tank before being supplied through different pipes.
4· Monitoring & Maintenance:Monitoring is an important aspect while using the commercial RO Plant this phase includes pressure monitoring, temperature, and flow rate. The time-to-time maintenance of this equipment enhances the performance and life of the membrane and provides long-term efficiency.
What is the need for a Commercial RO Plant?
Commercial RO plants have an important role in fulfilling the demands of purified water from various sectors like commercial, and industries.
1· Water Purification: Commercial Reverse Osmosis plants are designed to remove impurities, contaminants, and other dissolved solids. This plants make water suitable for various purposes from drinking water to industrial processes.
2· Compliance with Standards:In Noida and PAN India, Industries and Businesses need to fulfill the rules and regulations of water quality standards.
3· Restaurants and Food Services:A Commercial RO plant is very beneficial for the use of restaurants and food service establishments because they require clean and purified water to cook the food and for the consumption of their customers so this RO plant ensures the water quality and about the health safety of their consumer.
4· Healthcare Facilities: Hospitals and healthcare facilities require high-quality pure water for various uses like laboratory uses, medical equipment, and patient care, for all these applications commercial RO plant is very helpful.
Commercial RO Plant Equipment Details:
1- Raw Water Pump:A raw water pump is a mechanical device designed to transport untreated or raw water from its source, such as a river, well, or reservoir, to a treatment facility or a distribution system.
This pump is fundamental to water supply systems and various industrial processes. The primary purpose of a raw water pump is to provide the necessary pressure to move raw water through the treatment process or to distribute it to different points of use.
2- ACF: An activated carbon filter is known as ACF.An Activated Carbon Filter is an important component in the pre-treatment stage of a commercial RO plant. Its primary function is to remove chlorine, organic compounds, and other impurities from the water before it enters the RO membrane.
Activated carbon is highly effective in adsorbing organic substances, improving the overall quality of the water, and protecting the RO membrane from potential damage.
3- MGF:MGF is known asa multi-grade filter. The Multi-Grade Filter (MGF) enhances water quality by eliminating larger suspended particles from the water source.
This pre-treatment step is crucial for improving the efficiency of subsequent purification processes.
4- Micron-Filter:The micron filter is designed to capture and remove tiny particles from water.
Its primary purpose is to improve the overall quality of the liquid
by removing impurities that might affect its clarity, taste, or suitability for specific applications.
Micron filters operate based on the principle of microfiltration, which involves passing the liquid through a filter medium with microscopic-sized pores. The filter medium may be made of synthetic membranes, ceramic, or other porous materials. The size of the filter pores is measured in microns (one micron is equivalent to one-millionth of a meter), and the filter is selected based on the desired level of filtration.
5- Membrane: In the RO System, a membrane refers to the important component responsible for the separation of water molecules from dissolved salts and other contaminants. The membrane in an RO system serves the primary purpose of selectively allowing water molecules to pass through while blocking the passage of dissolved impurities such as salts, minerals, and other contaminants. This process is a key step in purifying water for various applications.
RO membranes are typically made of semi-permeable materials, often thin films of polyamide or polysulfone. These materials allow for high water permeability while effectively rejecting dissolved solutes.
During the RO process, water is pressurized and forced through the RO membrane. The membrane acts as a selective barrier, allowing water molecules to pass through small pores while blocking the larger ions and molecules. This separation is based on the principle of osmosis in reverse, where water moves from an area of lower solute concentration to an area of higher solute concentration.
6- High-Pressure Pump:In a Reverse Osmosis (RO) plant, a high-pressure pump is animportant component of the system.
The primary purpose of the high-pressure pump in an RO plant is to provide the necessary force to push water through the semi-permeable membranes during the reverse osmosis process. This elevated pressure is essential for overcoming the osmotic pressure and facilitating the separation of pure water from impurities.After the water undergoes pre-treatment to remove large particles and impurities, it enters the high-pressure pump. The pump pressurizes the water to a level required for the RO process. This high pressure is crucial for forcing the water through the RO membrane, allowing only water molecules to pass through while rejecting dissolved salts, minerals, and other contaminants.There are various types of high-pressure pumps used in RO plants, including centrifugal pumps and positive displacement pumps. The selection depends on factors such as the size of the plant, the required pressure, and the specific characteristics of the water being treated.
The efficiency and performance of the RO process heavily rely on the high-pressure pump. It ensures that the water is pushed through the membrane with sufficient force, allowing the membrane to effectively separate clean water from impurities. Proper pressure is essential for achieving the desired water purity and production rates.
Pipes & Fittings and Vessels:
In a Reverse Osmosis (RO) plant, pipes and fittings playan important role in the conveyance of water and various fluids throughout the system.
1. Pipes:
Pipes are used to transport water and different solutions between various components of the RO system.
Pipes in an RO plant are typically made of materials resistant to corrosion and suitable for conveying treated water.
Common materials include PVC (Polyvinyl Chloride), CPVC (Chlorinated Polyvinyl Chloride), stainless steel, and high-density polyethylene (HDPE).
Pipes are configured to transport water from the source to the pre-treatment units, through the high-pressure pump, and into the membrane modules. Proper sizing and material selection are essential to avoid contamination and ensure smooth fluid flow.
2. Fittings:
Fittings are connectors used to join sections of pipe and direct the flow of water within the RO system.
Types: Various types of fittings, such as elbows, tees, couplings, and valves, are employed in an RO plant. Each type serves a specific purpose, such as changing the direction of flow, connecting pipes of different sizes, or controlling the flow rate.
Materials: Similar to pipes, fittings are made from materials compatible with water treatment processes, ensuring they do not introduce contaminants or degrade over time.
Seals and Gaskets: Fittings often include seals and gaskets made of materials resistant to water treatment chemicals. Proper sealing is critical to prevent leaks and maintain the integrity of the system.

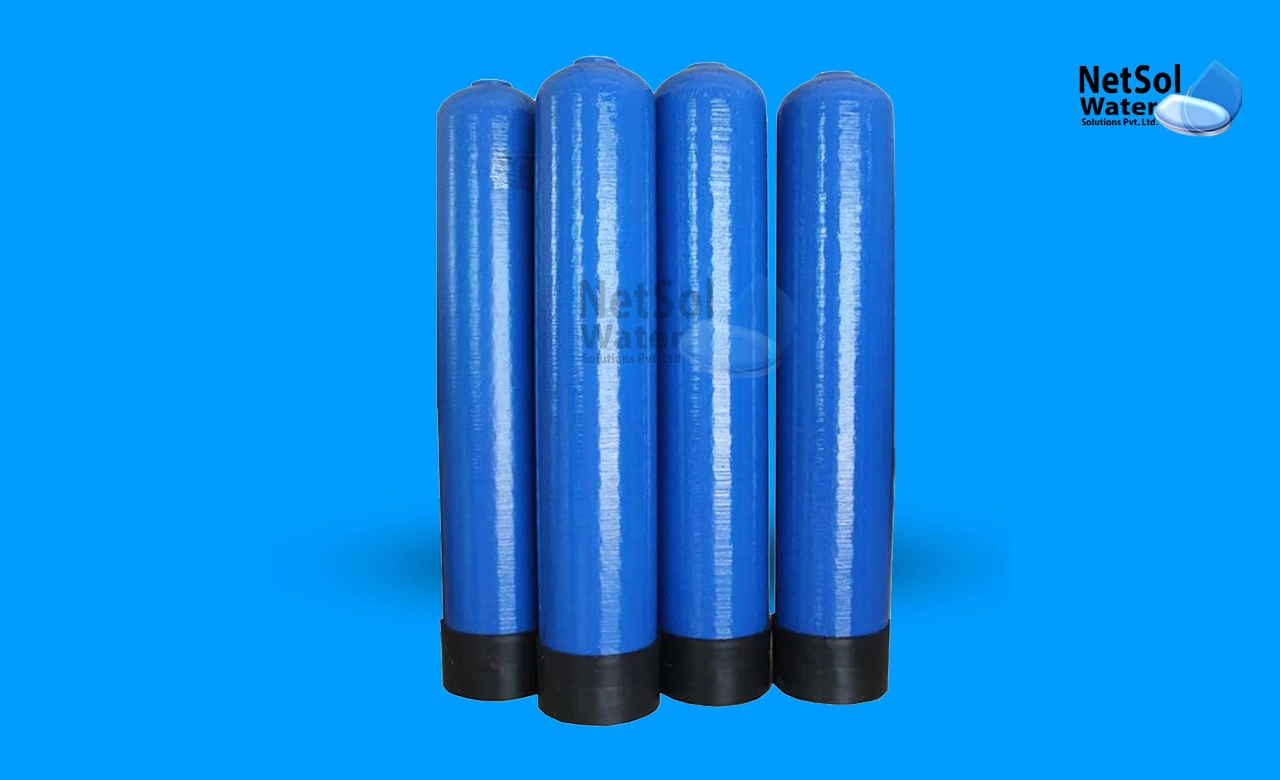

3. Pressure Vessels:
Purpose: Pressure vessels house the RO membranes and operate under high pressure to facilitate the separation of purified water from impurities.
Materials: Pressure vessels are typically constructed from materials like fiberglass, stainless steel, or specialized polymers. These materials must withstand the high pressures associated with the RO process.
End Caps and Connectors: End caps and connectors, which are essentially fittings, play a role in sealing and connecting the pressure vessels, ensuring a secure and leak-free environment for the RO membranes.
4. RO Plant Stand:
1· Purpose: The stand in an RO plant typically refers to a supporting structure or framework on which various components of the RO system are mounted or installed.
2· Components: The stand may support elements such as pre-treatment units, high-pressure pumps, pressure vessels containing RO membranes, and other associated equipment.
3· Material: Stands are commonly constructed from materials like stainless steel or other corrosion-resistant materials to withstand the environmental conditions within the plant.
5- RO Membrane Stand:
1· Purpose: In some cases, a stand may specifically refer to a mounting structure for individual RO membrane elements.
2· Design: These stands are designed to securely hold the RO membrane elements in place, often arranged in an array. This allows for efficient water flow through the membranes.
3· Adjustability: The stands may be adjustable to accommodate different configurations or sizes of RO membrane elements.
6· Dosing Pump:In a Reverse Osmosis (RO) plant, a dosing pump is a very helpful component that precisely injects specific chemicals into the water to achieve optimal treatment conditions. It ensures accurate and controlled dosages of chemicals like coagulants, flocculants, antiscalants, or pH-adjusting substances for effective water purification.
What are the Fixed cost and Variable / Operation cost to run the RO Plant? Consumable Cost in detail?
1- Fixed Costs:
Fixed costs in operating a Reverse Osmosis (RO) plant are those that remain constant regardless of the level of water production.
2- Initial Investment:
The capital expenditure for purchasing the RO plant equipment, including membranes, pumps, filters, and other necessary components.
3- Installation Costs:
Costs associated with the installation of the RO plant, including labor, engineering, and construction expenses.
4- Infrastructure and Building Costs:
Expenses related to the construction or modification of the facility housing the RO plant, including structural components, electrical systems, and plumbing.
6- Utilities:
Ongoing costs for electricity, heating, and cooling are required for the operation of the RO plant.
7- Labor Costs:
Salaries and wages for personnel involved in the operation, maintenance, and monitoring of the RO plant.
8- Insurance and Permits:
Costs associated with obtaining necessary permits, licenses, and insurance coverage for the RO plant.
9- Variable/Operation Costs:
Variable or operational costs are those that vary depending on the level of water production and the actual operation of the RO plant. These include:
10- Energy Consumption:
The cost of electricity to power pumps, high-pressure pumps, and other equipment involved in the RO process.
11- Membrane Replacement:
Over time, RO membranes degrade and need replacement. The cost of purchasing and installing new membranes is a significant operational expense.
12- Chemical Usage:
Some RO plants may use chemicals for pre-treatment, cleaning, or pH adjustment. The cost of these chemicals is considered an operational expense.
13- Maintenance and Repairs:
Costs associated with routine maintenance, repairs, and replacement of components to ensure the smooth operation of the RO plant.
14- Labor for Operation and Monitoring:
Ongoing labor costs for personnel responsible for daily operation, monitoring, and troubleshooting of the RO plant.
Consumables Cost in Detail:
Consumables refer to items that are regularly used and need replenishment. In the context of an RO plant, consumables include:
1- RO Membranes:
The semi-permeable membranes in the RO system have a finite lifespan and need periodic replacement.
2- Chemicals:
Consumables such as antiscalants, cleaning solutions, and disinfectants are used in pre-treatment, cleaning, and maintenance processes.
3- Filter Cartridges:
Cartridges in pre-filters or post-filters that capture particles and impurities need regular replacement.
4- O-rings and Seals:
Rubber seals and O-rings in pumps and valves wear over time and need replacement to maintain system integrity
Consumables such as antiscalants, cleaning solutions, and disinfectants are used in pre-treatment, cleaning, and maintenance processes.
5- Filter Cartridges:
Cartridges in pre-filters or post-filters that capture particles and impurities need regular replacement.
6- O-rings and Seals:
Rubber seals and O-rings in pumps and valves wear over time and need replacement to maintain system integrity
What is the Rejection ratio between Permeate water/ Treated water and rejected water, how to reduce the ratio of rejected water?
The rejection ratio in a Reverse Osmosis (RO) system refers to the ratio of the amount of water rejected or discharged as water to the amount of water that becomes permeated or treated water. This ratio is commonly expressed as a percentage.
Rejection Ratio Formula:
Rejection Ratio (%)=(Feed Water / Reject Water?)×100
Ways to Reduce the Rejection Ratio:
1- Optimize System Design:
Ensure that the RO system is properly designed based on the specific water quality and quantity requirements. A well-designed system can enhance efficiency and reduce water wastage.
2- Adjust Operating Parameters:
Fine-tune operating parameters such as pressure and flow rates to optimize the performance of the RO membranes. This can improve the separation efficiency and reduce the amount of water sent to the reject stream.
3- Implement Energy Recovery Devices:
Energy recovery devices, such as pressure exchangers or energy recovery turbines, can help recover energy from the reject stream and improve overall system efficiency.
4- Enhance Pre-Treatment:
Improve pre-treatment processes to reduce fouling and scaling of the RO membranes. Adequate pre-treatment can extend the lifespan of membranes and enhance their rejection capabilities.
5- Utilize High-Efficiency Membranes:
Choose high-quality membranes that offer better rejection of impurities. Upgrading to advanced membrane technologies can lead to increased permeate production and reduced reject water.
6- Implement Advanced Control Systems:
Use advanced control and monitoring systems to optimize the operation of the RO plant. Automated systems can adjust operating parameters in real-time based on variations in feed water quality and quantity.
7- Conduct Regular Maintenance:
Implement a proactive maintenance schedule to clean, inspect, and replace components as needed. Regular maintenance helps prevent membrane fouling and degradation, ensuring consistent performance.
8- Utilize Reject Water for Other Purposes:
Depending on the quality of the reject water, consider using it for non-potable purposes or in other industrial processes. This approach can minimize overall water wastage.
9- Implement Water Recovery Technologies:
Some advanced technologies, such as zero liquid discharge (ZLD) or brine concentrators, can further treat and recover water from the reject stream, reducing overall water wastage.
10- Conduct Water Audits:
Regularly monitor and conduct water audits to identify and address inefficiencies in the RO system. Identifying areas for improvement can lead to reduced reject ratios.
What are the Consumables or Consumable part in the Commercial RO Plant and what is the cost of consumables?
Consumables in a commercial Reverse Osmosis (RO) plant are components that are regularly used and need periodic replacement to maintain the efficiency and
effectiveness of the system. The cost of consumables can vary depending on factors such as the size of the plant, the quality of components used, and the local market conditions. Here are some common consumables and their roles:
1- RO Membranes:
Semi-permeable membranes that separate impurities from water during the RO process.
The cost of RO membranes depends on the membrane type, brand, and size. It is a significant portion of the overall consumables cost.
2- Pre-Filters and Post-Filters:
Cartridges or filters that capture particles and impurities before and after the RO membranes.
Replacement filters come in various materials and sizes, impacting their cost.
3- O-rings and Seals:
Rubber seals and O-rings in pumps, valves, and other components to prevent leaks.
Relatively low, but they are critical for maintaining the integrity of the system.
4- Activated Carbon Filters (ACF):
Removes organic compounds, chlorine, and other chemicals in the pre-treatment stage.
The cost varies based on the size and quality of the activated carbon filter.
5- Multi-Grade Filters (MGF):
Filters out larger particles and sediments in the pre-treatment stage.
Similar to ACF, the cost depends on the size and quality of the multi-grade filter.
6- Cleaning Chemicals:
Chemicals used for cleaning and maintenance of the RO membranes to prevent fouling.
Variable based on the type and quantity of cleaning chemicals required.
7- Anti-Scalant Chemicals:
Prevents scaling on the membrane surfaces caused by mineral deposits.
The cost of anti-scalant chemicals depends on the volume used and the specific formulation.
8- pH Adjustment Chemicals:
Used to adjust the pH level of water to optimize the performance of the RO membranes.
The cost varies based on the type and amount of chemicals needed.
9- UV Lamp (if applicable):
Provides disinfection by exposing water to ultraviolet light.
UV lamp replacement cost depends on the lamp type, size, and brand.
10- Pressure Gauges and Sensors:
Instruments used for monitoring pressure and other parameters in the RO system.
The cost of pressure gauges and sensors can vary based on their specifications.
11- Flow Meters:
Measures the flow rate of water through the system.
The cost depends on the type and accuracy of the flow meters.
12- Dosing Pump Components:
Components such as tubing and diaphragms in dosing pumps are used for chemical injection.
Replacement parts for dosing pumps vary in cost.
When should you do the service of your commercial RO Plant?
Regular servicing of a commercial Reverse Osmosis (RO) plant is essential to ensure its optimal performance, maintain water quality, and prolong the lifespan of components. The frequency of service may vary based on factors such as the plant's usage, water quality, and environmental conditions. Here are some general guidelines for when to service a commercial RO plant:
1- Regular Inspection:
Perform routine visual inspections of the RO system to check for leaks, damaged components, or any signs of wear. This can be done weekly or monthly.
2- Membrane Inspection:
Check the condition of RO membranes regularly. Membrane fouling or scaling may require more frequent inspections, and membranes may need replacement based on performance indicators.
3- Pressure and Flow Monitoring:
Regularly monitor pressure and flow rates in the RO system. Deviations from normal operating parameters may indicate issues that need attention.
4- Pre-Treatment System Check:
Inspect and replace pre-treatment components, such as filters and activated carbon, based on the manufacturer's recommendations or when pressure differentials indicate reduced efficiency.
5- Chemical Dosing System:
If the RO plant uses chemicals for pre-treatment, cleaning, or maintenance, monitor chemical dosing systems regularly to ensure proper functioning.
6- Conductivity and TDS Monitoring:
Regularly measure the total dissolved solids (TDS) and conductivity of the permeate water. A sudden increase may indicate membrane issues.
7- pH Adjustment Check:
If chemicals are used for pH adjustment, monitor the pH levels to ensure they remain within the desired range.
8- Cleaning and Maintenance Schedule:
Adhere to a regular cleaning and maintenance schedule. This may involve cleaning membranes, replacing seals, and ensuring the overall cleanliness of the system.
9- Regular Water Quality Testing:
Periodically conduct comprehensive water quality testing to ensure the treated water meets the required standards. This may include microbiological testing, chemical analysis, and other relevant parameters.
8- Manufacturer's Guidelines:
Follow the manufacturer's guidelines and recommendations for servicing and maintenance. These guidelines are typically provided in the equipment manuals.
9- Seasonal Considerations:
Consider seasonal factors such as temperature variations, which can affect the performance of the RO system. Adjustments or additional maintenance may be needed during extreme weather conditions.
10- Record Keeping:
Maintain detailed records of maintenance activities, replacement schedules, and any issues encountered. This documentation can aid in troubleshooting and future planning.
What is the name of the Chemical that is been used in commercial Plants? What are the daily and monthly consumptions in the different capacities of RO Plant?
What is the cost of this Antiscalant Chemical?
The specific chemical used as an anti-scalant in a commercial Reverse Osmosis (RO) plant can vary based on factors such as water composition, operating conditions, and the manufacturer's recommendations. Common antiscalant chemicals include:
1- Polyphosphates: Used to inhibit the formation of scale deposits on the RO membrane surface.
2- HEDP (HydroxyethylideneDiphosphonic Acid): An effective scale inhibitor that helps prevent the precipitation of minerals.
3- Phosphonates: Various phosphonate compounds may be used to control scale formation in RO systems.
The daily and monthly consumption of anti-scalant chemicals can vary depending on the size and capacity of the RO plant, the water quality, and the specific dosage requirements. Generally, the dosage is measured in parts per million (ppm) or milligrams per liter (mg/L) of treated water.
Example:
Daily Consumption: 3 to 5 mg/L (depending on water conditions)
Monthly Consumption: Approximately 90 to 150 mg/L (assuming a 30-day month)
It's important to note that these are general ranges, and the actual consumption may vary. The dosage is typically determined through water analysis and system monitoring.
What all the impurities in the water get treated by commercial RO Plant,write all impurities names in detail.
1- Total Dissolved Solids (TDS):
This encompasses various dissolved minerals and salts present in water, such as calcium, magnesium, sodium, and other ions.
2- Suspended Solids:
Larger particles that are not dissolved in water but are suspended. These can include sand, silt, and other particulate matter.
3- Bacteria and Viruses:
Microorganisms that can pose health risks. RO membranes are effective in rejecting bacteria and viruses, contributing to water disinfection.
4- Dissolved Gases:
Gases like oxygen and carbon dioxide that can be dissolved in water. RO can help remove these gases.
5- Organic Matter:
Organic compounds from natural sources or pollution, such as humic acids, tannins, and other organic substances.
6- Chlorine and Chloramines:
Disinfectants commonly used in water treatment. RO can effectively remove chlorine and chloramines, which can be harmful to RO membranes.
7- Heavy Metals:
Metals with high atomic weights, including lead, arsenic, cadmium, and mercury. RO is capable of removing these metals.
8- Pesticides and Herbicides:
Chemicals used in agriculture that can contaminate water sources. RO can help eliminate many pesticides and herbicides.
9- Nitrates and Nitrites:
Nitrogen compounds can be present in water due to agricultural runoff or other pollution sources.
10- Pharmaceuticals and Endocrine Disruptors:
Residues from pharmaceuticals and personal care products may find their way into water sources. RO can effectively remove many of these contaminants.
11- Radioactive Substances:
Radionuclides such as radium, uranium, and radon that can occur naturally or result from human activities. RO can contribute to their removal.
12- Hardness Minerals:
Minerals that contribute to water hardness, such as calcium and magnesium. RO can reduce water hardness.
What is the area Required to Install RO?
The area required to install a Reverse Osmosis (RO) system can vary based on several factors, including the capacity of the RO plant, the configuration of the equipment, and the specific design considerations. Here are some general guidelines regarding the space requirements for installing an RO system:
1· Footprint of Equipment:
The primary consideration is the physical size of the RO equipment, including pre-treatment systems, membranes, pumps, and associated components. The footprint will depend on the capacity of the RO plant and the type of membranes used.
2· Accessibility for Maintenance:
Sufficient space should be allocated for easy access to all components for maintenance and servicing. This includes space for replacing membranes, checking pressure vessels, and conducting routine inspections.
3· Pre-Treatment System:
If the RO plant includes pre-treatment systems such as sand filters, activated carbon filters, or chemical dosing units, additional space will be needed for these components.
4· Piping and Connections:
Adequate space should be provided for the installation of piping, valves, and fittings that connect the various components of the RO system.
5· Control Panel and Instrumentation:
A control panel with instrumentation for monitoring and controlling the RO system should be considered. Space needs to be allocated for the installation and operation of these control systems.
6· Utilities and Infrastructure:
Consideration should be given to the provision of utilities such as electrical connections, water supply, and drainage. Adequate space for utility connections and infrastructure should be planned.
7· Ventilation and Environmental Conditions:
The RO system may require ventilation to dissipate heat generated during operation. Consideration of environmental conditions, such as temperature and humidity, is essential for optimal system performance.
8· Expansion and Future Upgrades:
. If there is a possibility of future expansion or upgrades, additional space should be factored into the initial installation to accommodate potential changes in capacity or technology.
· It's important to consult with the manufacturer's specifications and recommendations for the specific RO system being installed. The design and space requirements can vary based on the brand, model, and intended application of the RO plant. Additionally, local regulations and building codes may impose specific requirements for the installation of water treatment systems.
How much Power / Electricity load is required to run the commercial RO Plant, kindly share the power load for different capacities of commercial RO Plants. To Operate the commercial RO Plant is a single-phase or three-phasepower connection required?
The power or electricity load required to run a commercial Reverse Osmosis (RO) plant depends on various factors, including the capacity of the plant, the efficiency of the equipment, and the specific design characteristics. Here are some general considerations regarding power requirements for different capacities of commercial RO plants:
1· Power Load for Different Capacity RO Plants:
The power load is typically measured in kilowatts (kW) or kilowatt-hours (kWh) and can vary based on the size and specifications of the RO system.
2· Small to Medium Capacity (e.g., 500 to 5,000 liters per hour):
The power load for smaller capacity RO plants is usually in the range of a few kilowatts, such as 5 kW to 20 kW, depending on factors like pump size, motor efficiency, and membrane technology.
3· Medium to Large Capacity (e.g., 5,000 to 50,000 liters per hour):
Medium to large capacity RO plants may have power loads ranging from 20 kW to 100 kW or more, depending on the specific design, the number of membranes, and the overall efficiency of the system.
4· Very Large Capacity (e.g., 50,000 liters per hour and above):
Larger RO plants with capacities exceeding 50,000 liters per hour may have higher power loads, potentially ranging from 100 kW to several hundred kilowatts.
5· Power Connection - Single Phase or Three Phase:
The power connection required for a commercial RO plant can be either single-phase or three-phase, depending on the size and power requirements of the system.
6· Single Phase:
Smaller capacity RO plants, typically in the lower range of production capacities, may operate on a single-phase power connection. Single-phase power is common for residential and smaller commercial applications.
7· Three Phase:
· Larger capacity RO plants, especially those with higher power loads, generally require a three-phase power connection. Three-phase power is more efficient for larger industrial and commercial applications.
· It's important to consult the manufacturer's specifications and recommendations for the specific RO system being installed. The power requirements will be influenced by the type and size of pumps, motors, and other electrical components used in the RO plant. Additionally, local electrical codes and regulations may dictate the type of power connection required for specific plant capacities.
What is the life of commercial RO membranes technically? In terms of water flow consumption? This meansthat how much of the processing of the watermembrane of commercial RO will be chocked?
The lifespan of a commercial RO membrane is influenced by various factors, and it's typically measured in terms of the volume of water processed rather than a specific time frame. The longevity of an RO membrane depends on factors such as water quality, pretreatment effectiveness, operating conditions, and maintenance practices.
Factors Affecting RO Membrane Life:
1- Water Quality: The presence of contaminants like suspended solids, dissolved minerals, and organic matter can impact membrane performance. Regular monitoring and pre-treatment are crucial to prolong membrane life.
2- Operating Conditions: Operating the RO system within specified pressure and temperature ranges is essential. Operating outside these parameters can affect membrane integrity.
3- Maintenance: Regular maintenance, including membrane cleaning and replacement of damaged components, is critical. Neglecting maintenance can lead to fouling, scaling, or biological growth on the membrane surface.
4- Membrane Life Expectancy: Commercial RO membranes typically have a lifespan measured in terms of processed water volume. Commonly, they are designed to last for thousands to tens of thousands of gallons per square foot of membrane area (gfd) before requiring replacement.
5- Choking or Fouling: Membrane fouling, which leads to reduced water flow, is a gradual process. It depends on the factors mentioned above. Regular monitoring of pressure differentials across the membrane and periodic cleaning can help address fouling issues and extend membrane life.
Indicators for Replacement:
1- Decline in Performance: A significant drop in water production or a decline in permeate quality may indicate membrane deterioration.
2- Maintenance Challenges: If cleaning becomes less effective over time, it could be a sign that the membrane needs replacement.
3- Increased Operating Pressure: A consistent rise in operating pressure may suggest reduced membrane efficiency.
ROI (return on investment) on Installation of commercial RO Plant for Industries and for individual Business, who are selling the water?
The Return on Investment (ROI) for the installation of a commercial Reverse Osmosis (RO) plant, particularly for industries or businesses selling water, depends on several factors. Calculating the ROI involves considering both the initial investment costs and the potential returns over a specific period. Here are key considerations for assessing ROI in the context of a commercial RO plant:
1- Initial Investment Costs:
This includes the capital expenditure for purchasing and installing the RO system, infrastructure, and other necessary components. It may also involve costs for water quality testing, permits, and compliance with regulatory requirements.
2- Operational Costs:
Ongoing operational costs include electricity, maintenance, replacement of consumables (membranes, filters, chemicals), labor, and other related expenses.
3- Water Production and Sales Revenue:
The revenue generated from selling treated water is a crucial factor. This depends on the production capacity of the RO plant, market demand for purified water, pricing strategies, and sales volume.
4- Market Demand and Pricing:
Assess the market demand for purified water in the targeted region or industry. Determine competitive pricing strategies to maximize sales revenue.
5- Cost of Consumables:
Evaluate the cost of consumables needed for maintaining and operating the RO plant. This includes membranes, filters, chemicals, and other components.
6- Utility Costs:
Consider the cost of utilities, particularly electricity, required to run the RO system. Energy-efficient equipment and practices can impact operational costs.
7- Maintenance and Downtime:
Factor in maintenance costs and potential downtime for servicing the RO plant. Regular maintenance can prevent issues and extend the lifespan of the equipment.
8- Regulatory Compliance:
Costs associated with meeting regulatory standards and obtaining necessary permits should be considered. Non-compliance can lead to fines and legal issues.
9- Market Expansion and Growth Potential:
Assess the potential for market expansion and growth. Consider diversification or scaling up production to meet increasing demand.
10- Operational Efficiency:
Efficiency in operation, water recovery rates, and minimized wastage can positively impact both operational costs and environmental sustainability.
ROI Calculations: ROI =(net profit/total investment)*100
The net profit is calculated by subtracting total operational costs from the revenue generated. ROI is expressed as a percentage of the total investment.
It's important to note that ROI calculations are specific to each business and industry. While a well-managed and strategically located commercial RO plant can yield a positive ROI, individual circumstances, market dynamics, and operational efficiency play crucial roles in determining success.
What is the Cost of a commercial RO Plant?
The cost of a commercial Reverse Osmosis (RO) plant can vary widely depending on several factors, including its capacity, the quality of components used, additional features, and the complexity of the system. Commercial RO plants can range from relatively small units for businesses to large-scale industrial systems. Here are general cost estimates based on capacity
Small to Medium Capacity (e.g., 500 to 5,000 liters per hour):
The cost for smaller commercial RO plants in this capacity range can start from approximately $10,000 to $50,000. This is a broad estimate and can vary based on specific requirements, quality of materials, and technology used.
Medium to Large Capacity (e.g., 5,000 to 50,000 liters per hour):
Commercial RO plants with medium to large capacities may have costs ranging from $50,000 to $200,000 or more. The price is influenced by factors such as the number of membrane elements, the type of membranes used, and the sophistication of the system.
Very Large Capacity (e.g., 50,000 liters per hour and above):
Large-scale industrial RO plants with capacities exceeding 50,000 liters per hour can have costs ranging from $200,000 to several million dollars. The cost increases significantly for high-capacity and custom-designed systems.
These cost estimates are general guidelines, and the actual cost can vary based on additional factors such as:
1- Quality of Components: The type and quality of membranes, pumps, valves, and other components used in the RO system influence the overall cost.
2- Pre-Treatment Systems: The inclusion of pre-treatment systems, such as sediment filters, activated carbon filters, and chemical dosing units, can add to the overall cost.
3- Automation and Control Systems: Advanced automation and control features, such as PLC (Programmable Logic Controller) systems, can contribute to higher costs.
4- Customization and Special Requirements: Custom-designed systems or those with specific requirements may incur additional costs.
5- Installation and Commissioning: Costs associated with the installation, commissioning, and initial startup of the RO plant should be considered.
6- Warranty and Support: Some manufacturers may offer extended warranties and support services, impacting the overall cost.
Precautions while installing commercial RO Plant?
Installing a commercial Reverse Osmosis (RO) plant is a complex process that requires careful planning and execution. Here are some key precautions to consider during the installation of a commercial RO plant:
1- Site Selection:
Choose a well-ventilated and clean site for the installation of the RO plant. Avoid areas prone to flooding or extreme environmental conditions.
2- Space and Accessibility:
Ensure adequate space for the RO equipment and components. Plan for easy accessibility for maintenance, repair, and replacement activities.
3- Utilities and Infrastructure:
Confirm the availability and adequacy of utilities such as electrical power, water supply, and drainage. Ensure that the infrastructure can support the load and requirements of the RO plant.
4- Compliance with Regulations:
Adhere to local regulations and codes related to water treatment installations. Obtain necessary permits and approvals before commencing the installation.
5- Pre-Treatment Systems:
Install pre-treatment systems, such as sediment filters and activated carbon filters, to protect the RO membranes from fouling and scaling. Ensure proper sizing and maintenance.
6- Membrane Installation:
Handle RO membranes with care to avoid damage. Install membranes according to the manufacturer's guidelines, ensuring proper orientation and alignment.
7- Piping and Fittings:
Use high-quality pipes, fittings, and connectors compatible with the water being treated. Avoid using materials that may corrode or contaminate the water.
8- Pressure Relief Valves:
Install pressure relief valves to protect the RO system from excessive pressure. Set these valves according to system specifications to prevent damage to components.
9- Pressure Gauges and Sensors:
Install pressure gauges and sensors at strategic points to monitor and control the pressure levels throughout the system. Ensure accurate readings for effective operation.
10- Electrical Connections:
Hire qualified electricians to install electrical components, ensuring proper wiring, grounding, and compliance with safety standards. Use appropriate protection devices, such as circuit breakers.
11- Control Systems and Automation:
Install control systems, such as Programmable Logic Controllers (PLCs), to automate the operation of the RO plant. Program these systems according to the desired parameters and operational requirements.
12- Chemical Dosing Systems:
If chemical dosing is part of the water treatment process, install dosing pumps and systems carefully. Follow recommended dosages and safety guidelines for chemical handling.
13- Commissioning and Testing:
Perform thorough commissioning and testing before putting the RO plant into full operation. Verify that all components function as intended and that water quality meets the required standards.
14- Training and Documentation:
Provide training to operators on the proper use, maintenance, and troubleshooting of the RO plant. Keep comprehensive documentation, including equipment manuals, schematics, and operating procedures.
15- Emergency Preparedness:
Develop and communicate emergency response plans. Install safety devices such as shut-off valves and emergency stop buttons to quickly halt operations in case of emergencies.
Difference between Commercial RO Plant and Domestic RO Plant
Commercial RO plants and domestic RO (Reverse Osmosis) plants are designed for different scales of water treatment and serve distinct purposes.
1- Capacity:
Commercial RO Plant: Commercial RO plants are designed for higher water production capacities, typically ranging from several hundred liters per hour to thousands of liters per hour. They are suitable for applications in industries, businesses, and large-scale water purification.
Domestic RO Plant: Domestic RO plants, commonly found in households, are designed for lower water production capacities, usually ranging from 5 to 20 liters per hour. They are intended to meet the drinking water needs of a household.
2- Application:
Commercial RO Plant: Commercial RO plants are used in various industrial and commercial settings, such as manufacturing, food and beverage processing, pharmaceuticals, hotels, and large-scale water treatment facilities.
Domestic RO Plant: Domestic RO plants are installed in residences to provide clean and purified drinking water for household use.
3- Size and Footprint:
Commercial RO Plant: Commercial plants are larger and have a more significant footprint. They require dedicated space for installation, housing larger membrane arrays, pumps, and other components.
Domestic RO Plant: Domestic RO systems are compact and designed to fit under sinks or in kitchen cabinets. They have a smaller footprint suitable for residential settings.
4- Complexity and Features:
Commercial RO Plant: Commercial plants are more complex, often incorporating advanced features such as multiple stages of pre-treatment, high-pressure pumps, and automation systems. They may also have additional components for specific water treatment needs.
Domestic RO Plant: Domestic RO systems are simpler in design, typically consisting of pre-filters, an RO membrane, and post-filters. They are user-friendly and often come with basic features suitable for home use.
5- Water Quality Standards:
Commercial RO Plant: Commercial plants are designed to meet specific water quality standards required for industrial processes or commercial applications. They often involve precise control of water parameters.
Domestic RO Plant: Domestic RO systems are designed to meet drinking water standards, removing impurities, contaminants, and improving taste and odor for safe consumption.
6- Cost:
Commercial RO Plant: Commercial RO plants are more expensive due to their larger capacity, advanced features, and robust construction. Costs can vary widely based on capacity and specifications.
Domestic RO Plant: Domestic RO systems are generally more affordable, catering to the budget constraints of individual households.
7- Maintenance:
Commercial RO Plant: Commercial plants may require more frequent and specialized maintenance due to their larger scale and complexity. Regular monitoring and maintenance are critical for optimal performance.
Domestic RO Plant: Domestic RO systems are designed for ease of maintenance. Filter replacement and periodic cleaning are the primary maintenance tasks for these systems.
What all are the parameters you should check in the treated water of commercial RO Plant Like TDS pH and others And why??
In the treated water of a commercial RO plant, key parameters to check include:
1- TDS (Total Dissolved Solids):
Why: TDS indicates the concentration of dissolved minerals and salts. Monitoring TDS helps ensure the effectiveness of the RO process in removing impurities.
2- pH (Acidity/Alkalinity):
Why: pH affects water quality and can impact the lifespan of distribution systems. Monitoring pH ensures water is within acceptable ranges for consumption and avoids corrosion or scaling.
3- Conductivity:
Why: Conductivity measures the ability of water to conduct an electrical current, which is influenced by dissolved ions. It provides insights into water purity and the effectiveness of the RO system.
4- Pressure:
Why: Monitoring system pressure is crucial for assessing the performance of the RO membrane. Deviations from optimal pressure levels can indicate issues such as fouling or scaling.
5- Temperature:
Why: Temperature impacts the viscosity and density of water, affecting the efficiency of the RO process. Monitoring temperature ensures the system operates within specified ranges.
Regularly checking these parameters helps maintain water quality, ensures the proper functioning of the RO plant, and allows for timely adjustments or corrective actions when needed.
What is Hardness in Water and Relation between TDS and Hardness?
Hardness in water refers to the concentration of dissolved minerals, primarily calcium (Ca2+) and magnesium (Mg2+), in the water. These minerals are commonly found in geological formations and can leach into water sources. The hardness of water is typically expressed in terms of calcium carbonate (CaCO3) equivalents, measured in milligrams per liter (mg/L) or parts per million (ppm).
Types of Hardness:
Temporary Hardness: Caused by the presence of bicarbonate ions (HCO3-) in water, primarily due to dissolved carbonates and bicarbonates of calcium and magnesium.
Permanent Hardness: Arises from the presence of non-carbonate salts of calcium and magnesium, such as sulfates and chlorides.
Relation between TDS (Total Dissolved Solids) and Hardness:
1· While hardness and TDS are related, they are not the same. TDS measures the total concentration of all dissolved substances in water, including minerals, salts, and other dissolved solids. Hardness, on the other hand, specifically focuses on the concentration of calcium and magnesium ions.
2· The relationship between TDS and hardness is influenced by the types of dissolved solids present in water. In some cases, a significant portion of TDS may be attributed to hardness minerals, especially when bicarbonates, carbonates, and sulfates of calcium and magnesium are prevalent.
3· However, not all TDS contribute to water hardness. For example, dissolved salts like sodium chloride (table salt) do not contribute to water hardness.
Consumption of filter and cost of filter per year
The consumption and cost of filters in a water filtration system depend on various factors, including the type of filters used, the frequency of replacement, and the water quality. Here's a general overview:
1- Consumption of Filters:
The consumption of filters is determined by the type and size of the filtration system, as well as the specific filters used in it. Common types of filters include sediment filters, carbon filters, and membrane filters (e.g., in reverse osmosis systems).
The frequency of filter replacement depends on factors such as the level of water contamination, the volume of water treated, and the manufacturer's recommendations. Sediment filters may need replacement more frequently than carbon or membrane filters.
2- Cost of Filters:
The cost of filters varies based on the type, brand, and specifications of the filters. Different filters have different price points. Here are approximate costs for various types of filters:
Sediment Filters: $5 to $20 per filter.
Carbon Filters: $10 to $40 per filter.
Reverse Osmosis (RO) Membrane: $20 to $100 or more, depending on the brand and quality.
3- Annual Cost Estimate:
To estimate the annual cost of filters, you need to consider the following factors:
Filter Replacement Frequency: Determine how often each type of filter needs to be replaced. This information is usually provided by the filter manufacturer or system supplier.
Number of Filters: Calculate the total number of filters in your water filtration system. Different systems may have multiple stages with different types of filters.
Cost per Filter: Multiply the number of filters by their cost to get the total cost for each type.
Sum the Costs: Add up the costs for all types of filters to get the total annual cost of filter replacement.
What is the pour size of the RO membrane?
The pore size of a Reverse Osmosis (RO) membrane is extremely small, typically on the order of angstroms (10^(-10) meters). RO membranes are considered to be semi-permeable, allowing water molecules to pass through while blocking the majority of dissolved salts, minerals, and impurities. The precise pore size can vary between different types and brands of RO membranes, but they are generally designed to effectively reject particles and contaminants based on their size and charge.
The pore size of Micron filter
The pore size of a micron filter, also known as a microfiltration filter, is typically measured in micrometers (µm) or microns. Micron filters are designed to capture particles above a certain size while allowing smaller particles and water to pass through. The pore size can vary depending on the specific application and the level of filtration required. Common micron filter sizes range from 0.1 microns to several micrometers.
What is the reduction ration of TDS by Membrane?
1· The reduction ratio of Total Dissolved Solids (TDS) by a membrane, such as in a Reverse Osmosis (RO) system, is typically expressed as a percentage. It represents the percentage of TDS removed from the water during the filtration process. The reduction ratio depends on factors such as the type of membrane, water quality, and system design.
2· In general, RO membranes are highly effective in reducing TDS. A well-functioning RO system can achieve a TDS reduction of 90% or more, meaning that over 90% of the dissolved solids are removed from the water, leaving it with significantly lower TDS levels. The actual reduction ratio can vary based on specific operating conditions and the quality of the membrane. Regular monitoring and maintenance are essential to ensure optimal performance and TDS reduction in RO systems.
Dos and Don’t while operating the commercial RO Plant?
Dos:
1- Regular Monitoring:
Regularly monitor key parameters such as TDS, pH, pressure, and flow rates to ensure the system is operating within optimal conditions.
2- Proper Maintenance:
Follow a scheduled maintenance plan for components such as membranes, pumps, and filters. Regular cleaning and replacement of damaged parts are essential.
3- Water Quality Testing:
Conduct frequent water quality tests to verify the effectiveness of the treatment process. Adjust chemical dosing if necessary.
4- Follow Manufacturer Guidelines:
Adhere to the manufacturer's guidelines for operation, maintenance, and troubleshooting. This ensures that the system operates as intended.
5- Safety Procedures:
Implement and adhere to safety procedures for handling chemicals, conducting maintenance, and addressing emergencies.
6- Record Keeping:
Maintain detailed records of operational parameters, maintenance activities, and any adjustments made. This helps in troubleshooting and trend analysis.
Don'ts:
1- Ignoring Pressure Limits:
Operate the system at pressures beyond the manufacturer's specified limits. Excessive pressure can damage components, including membranes.
2- Neglecting Pre-treatment:
Neglect proper pre-treatment processes. Pre-treatment helps prevent fouling and scaling, ensuring the longevity of the RO membranes.
3- Overlooking System Leaks:
Ignore or postpone the repair of system leaks. Leaks can lead to inefficiencies and may compromise water quality.
4- Inadequate Chemical Handling:
Mishandle or incorrectly dose chemicals. Follow proper procedures for chemical addition to avoid damage to the system and ensure effective water treatment.
5- Ignoring Temperature Limits:
Operate the system at temperatures outside the recommended range. Temperature variations can affect membrane performance.
6- Untrained Operation:
Allow untrained personnel to operate or perform maintenance on the RO system. Proper training ensures safe and efficient operation.
Power Consumption in detail - Three phase or single phase
The power consumption in a commercial Reverse Osmosis (RO) plant can vary based on factors such as system capacity, design, and specific components. Generally, RO plants can be designed to operate on either three-phase or single-phase power, depending on their size and requirements.
1. Single-Phase Power:
Usage: Smaller and lower-capacity RO systems, typically designed for small businesses or residential applications, may operate on single-phase power.
Configuration: Single-phase power supplies consist of two conductors, a live (hot) wire, and a neutral wire.
Examples: RO units with lower flow rates, such as those used in small-scale water purification, might utilize single-phase power.
2. Three-Phase Power:
Usage: Larger commercial and industrial RO systems, designed for higher flow rates and capacities, often operate on three-phase power.
Configuration: Three-phase power supplies consist of three conductors—live (hot) wires labeled as L1, L2, and L3. This configuration is more common in larger industrial setups.
Examples: Large-scale RO plants serving industries, municipalities, or facilities with high water demand typically use three-phase power.
Power Consumption Details:
Components: Power consumption is influenced by components such as the high-pressure pump, motor, control systems, and ancillary equipment.
Operating Conditions: Power requirements can vary based on factors like feed water quality, pressure, and temperature.
Efficiency: Modern RO systems are designed for energy efficiency, utilizing advanced technologies to minimize power consumption during water treatment processes.
Monitoring: Regular monitoring of power consumption helps assess system efficiency and identify any deviations that may require maintenance or adjustments.
Considerations:
System Size: The size and capacity of the RO plant influence power requirements. Larger systems with higher flow rates generally require more power.
Design Efficiency: The efficiency of the RO system's design and components, including the high-pressure pump and membrane elements, plays a significant role in power consumption.
What is the role of the WLC(Water Level Controller and How does it help to save the water and save the commercial RO Plant and save the water?
A Water Level Controller (WLC) plays an important role in managing water levels within a commercial Reverse Osmosis (RO) plant. Its primary purpose is to optimize water usage, prevent wastage, and contribute to the efficient operation of the RO system. Here's how a WLC helps save water and enhance the performance of a commercial RO plant:
Role of Water Level Controller:
1- Maintaining Optimal Water Levels:
Role: The WLC monitors and maintains the desired water levels in various components of the RO plant, including tanks and reservoirs.
Importance: This ensures that the system always has an adequate supply of water for processing, preventing interruptions and maintaining consistent performance.
2- Preventing Overflow and Wastage:
Role: The WLC prevents overflows by stopping water supply when the desired levels are reached, avoiding unnecessary wastage.
Importance: Preventing overflows not only saves water but also contributes to the efficient use of resources and minimizes environmental impact.
3- Protecting Equipment:
Role: By maintaining optimal water levels, the WLC helps protect critical components of the RO system, such as pumps and membranes, from potential damage due to dry running or overfilling.
Importance: Protecting equipment ensures the longevity and reliability of the RO plant, reducing the need for frequent repairs and replacements.
4- Energy Efficiency:
Role: Efficient water management through the WLC contributes to energy efficiency by reducing unnecessary pumping and processing of excess water.
Importance: Lower energy consumption not only saves costs but also aligns with sustainable practices, making the operation of the RO plant more environmentally friendly.
5- Optimizing Water Recovery:
Role: The WLC can be configured to optimize water recovery by controlling reject and recovery ratios, allowing the plant to achieve the desired balance between purified water production and waste discharge.
Importance: This feature helps maximize the utilization of incoming water and minimizes the amount of water that goes to waste, promoting water conservation.
6- Overall Benefits:
Water Conservation: By preventing wasteful overflows and optimizing water recovery, a WLC contributes to water conservation efforts.
Cost Savings: Reduced water wastage and improved energy efficiency result in cost savings for both water supply and energy consumption.
Environmental Impact: The efficient use of water and energy aligns with sustainable practices, reducing the environmental footprint of the RO plant.
Why membrane manufacturers don’t give membrane warranties or No manufacturer gives a warranty of membranes why?
Membrane manufacturers often do not provide warranties for their products due to several reasons:
1- Variability in Operating Conditions:
RO membranes can be used in a wide range of applications and industries, each with its unique set of operating conditions. The performance of the membrane is heavily influenced by factors such as water quality, temperature, pressure, and maintenance practices. The variability in these conditions makes it challenging for manufacturers to offer a standard warranty that covers all possible scenarios.
2- Dependence on Proper Installation and Maintenance:
The proper installation and ongoing maintenance of RO membranes are critical factors in their performance and longevity. Issues such as inadequate pre-treatment, improper cleaning procedures, or failure to follow recommended operating parameters can significantly impact membrane life. As manufacturers cannot control how their products are installed and maintained, offering a warranty becomes challenging.
3- Natural Wear and Tear:
RO membranes are subject to natural wear and tear over time, especially when exposed to challenging water conditions. The gradual decline in membrane performance is considered a normal part of their lifecycle. Manufacturers may find it impractical to provide warranties for a product that inherently has a finite lifespan.
4- Varied Applications and Usage Patterns:
RO membranes are used in diverse applications, from residential systems to industrial processes. The intensity of usage and the specific contaminants present in the water can vary significantly. This diversity makes it difficult for manufacturers to predict the lifespan of the membranes accurately across all possible applications.
5- Complexity of Water Chemistry:
· Water chemistry varies widely, and different regions or sources of water may contain unique combinations of contaminants. The compatibility of membranes with specific water chemistries is a complex consideration.
· Manufacturers may hesitate to offer warranties given the unpredictable nature of the water sources.
· While membrane manufacturers may not provide warranties for their products, they often provide guidelines, specifications, and recommendations for optimal use.
· Users are encouraged to follow these guidelines, conduct regular maintenance, and adhere to recommended operating conditions to maximize the performance and lifespan of RO membranes.
Netsol Water Commercial RO Plant Clients Name in Noida and in Delhi NCR
We are known for our highest quality of Products and our client list like NTPC, Vedanta, BHEL, Excedy, Bajaj Hindustan, JSW, Kailash Hospital, Max Healthcare, NBCC, Parle, Sleepwell, Prateek Fedora, in Noida and Delhi NCR.
