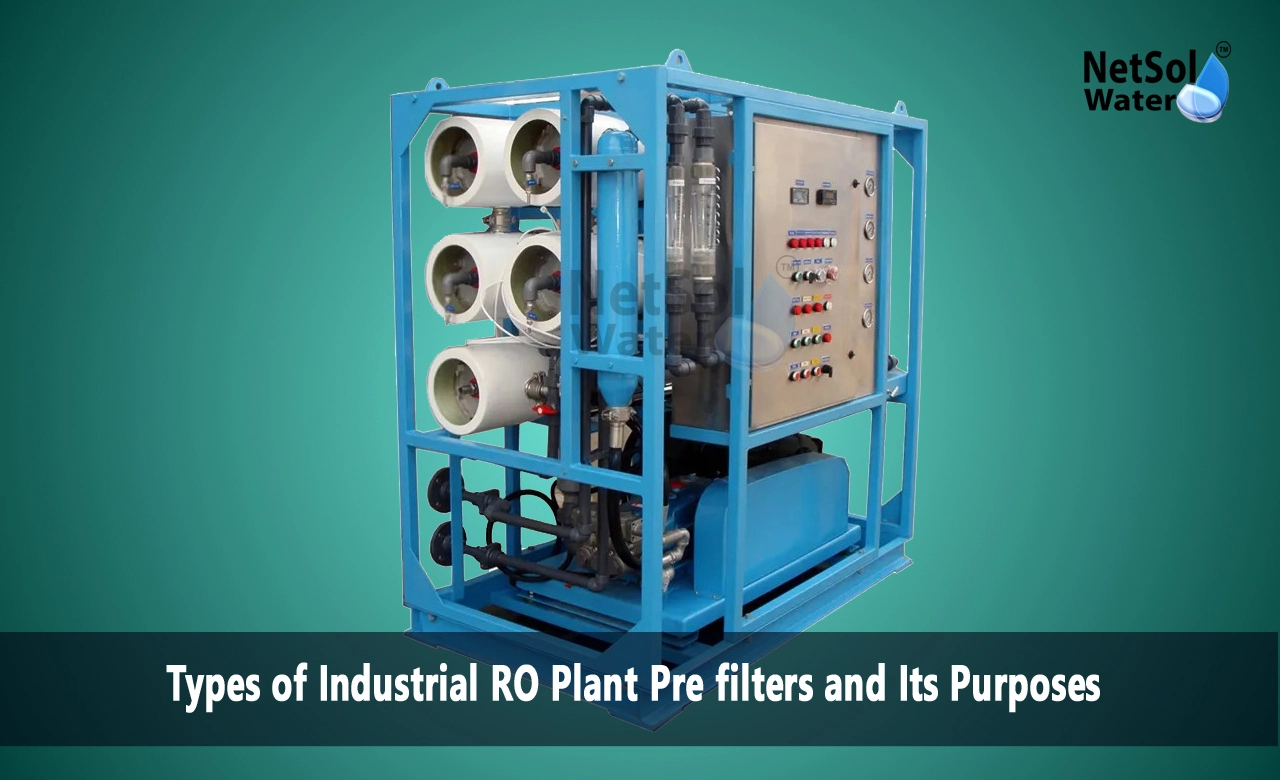

Types of Industrial RO Plant Pre filters and Its Purposes
In industries, RO plants are used to filter water to eliminate particular contaminants that may have an impact on production processes, end products and product durability. One of the most important parts of any RO plant is the prefilter. These filters serve as a safety measure to safeguard the RO membrane, which is the most crucial element of the entire system, by filtering out all the large particles and pollutants in advance. We will discuss about the kind of prefilters employed in industrial RO plants and the particular roles that they tend to play. By gaining some knowledge about these prefilters, it will enable you to realize their significance in the optimum performance and productivity of the RO plant.
Why Are Prefilters Important?
· Protecting the RO Membrane: It is an essential part of the system is the RO membrane, which is very sensitive, and costly, and can be easily fouled by particles, sediments or organic compounds. Some remove these contaminants through prefiltering – these filters remove the contaminants before they get to the membrane.
· Improving Water Quality: Usually the work of an RO plant involves just the purification of water but the prefilters provide the boost of the general water quality before it gets purified by the RO plant. Removal of the larger particles means that purification becomeeasier as the water fed to the RO membrane is already clean.
· Reducing Maintenance Costs: Prefilters are utilized in order to remove contaminants at a preliminary stage thus lowering total workload to be done by the RO plant. These are achieved through decreasing the number of cleanings and replacements for the membranes while at the same time reducing the rate at which the other parts and components of the system wear out.
Types of Prefilters in Industrial RO Plants
1. Sediment Filters
Visible particles including sand, silt, grime, and rust are taken out of the water by using sediment filters. If not eliminated, these potentially very sharp particles could seriously harm the RO membrane.
How They Work:
Typically, sediment filters employ a mechanical filtration method in which water is passed through a porous substance or tiny mesh to capture solid particles. The filter's micron rating determines the size of particles that can be captured. Particles that are five microns or larger, for instance, will be removed by a 5-micron sediment filter.
Common Types:
Pleated Filters: These filters, which are made of materials like polyester, have a lot of surface area and are very good at trapping particles even at high flow rates.
Spun Filters: Known for their durability, these filters are usually used to remove tiny particles. They are composed of layers of fine fibers spun around a core.
2. Activated Carbon Filters
Activated carbon filters are used to filter out organic compounds, chlorine, and other chemicals found in the water supply. These substances can foul the RO membrane and also alter the taste and odor of the treated water.
How They Work:
Activated carbon filters employ a technique known as adsorption where the contaminants are selectively attracted to, and stick on, the outer surface of the carbon particles. Because of the multiple and interconnected pores of the activated carbon these filter types are very good at eliminating unwanted chemicals for the water.
Common Types:
· Granular Activated Carbon (GAC): This type of filter employ the use of loose granules of carbon for filtration of impurities. GAC filters are very effective, but tend to have a slower flow rate than all other filters ones.
· Carbon Block Filters: These filters are constructed from compressed particulate carbon, which gives them a more compact structure allowing for superior adsorption and more efficient filtration.
3. Multimedia Filters
Multimedia filters can filter out a wide variety of particles and unfavourable materials that can be present in the water such as the suspended solids, organic content and some chemicals. They are generally employed in the first stages of raw water pre-treatment before the water enters more selective filters.
How They Work:
Special filtering multimedia employs several layers of which each layer is made up of different material such as gravel, sand, and anthracite among others all these are arranged in a way that they specifically filter out particular types of contaminants. In the process of filtration, as water goes through these layers the size and type of particles that it will filter and remove from the water is experienced at this stage as is the cleaning process.
Advantages:
· Versatility: It holds a versatile feature and is equally efficient in dealing with a variety of contaminants.
· High Capacity: Possess a relatively large capacity in terms of the amount of water that the can handle; thus suitable for industrial uses.
4. Cartridge Filters
While cartridge filters are used to provide a more detailed filtration, hence are capable of trapping smaller particles and impurities than other pre-filters. They are commonly employed as the final component of prefiltering before the water reaches the RO membrane.
How They Work:
Through a cylindrical filter cartridge that may be constructed of polypropylene or cellulose, water is passed. The cartridge is filled with several layers so it is able to hold part of small particles effectively filtering them.
Common Types:
· Depth Filters: These cartridges trap particles within the entire thickness of the filter material, providing longer life and higher dirt-holding capacity.
· Surface Filters: These cartridges trap particles on the surface of the filter, providing precise filtration but with a shorter lifespan.
5. Iron Removal Filters
The purpose of iron removal filters is to separate dissolved iron from water. If iron is not removed, it can damage the RO membrane, develop stains, and clog pipes.
How They Work:
Usually, oxidation is used in these filters to transform dissolved iron into solid particles that may be filtered out. This process is catalyzed by the filter media, which is typically composed of minerals like manganese greensand and enables effective removal of iron.
Advantages:
· Specialized Filtration: Specifically targets iron, making it ideal for industries where iron contamination is a concern.
· Extended Membrane Life: By removing iron, these filters help extend the life of the RO membrane, reducing maintenance costs.
Conclusion
Prefilters are an essential part of every industrial RO plant since they safeguard the RO membrane and guarantee the system's overall effectiveness. You may better appreciate how each prefilter type contributes to the efficient operation of a RO plant by being aware of the various types available, including sediment filters, activated carbon filters, multimedia filters, cartridge filters, and iron removal filters.
Selecting the right prefilters for your industrial RO plant is dependent upon the particular pollutants present in the water you receive and the demands of your operation. In order for these prefilters to continue operating successfully and provide cleaner, safer, and more effective water treatment, regular maintenance and monitoring are also essential.
