How do ceramic membranes useful in industrial WWT?
Membranes are divided into two types: organic and inorganic. Because the materials they are constructed of (e.g., polysulfone, polyamide, or cellulose) do not withstand large concentrations of pollutants or severe pH or temperature values, the former are often used for mildly contaminated water. Furthermore, oxidants, oils, and organic materials are unwanted agents to avoid since they dirty and deteriorate the membranes.
For the treatment of complicated effluents, inorganic membranes are necessary, and ceramic membranes are rapidly being employed in the market due to their high efficiency, durability, and resilience to the most severe media.
The type of the effluent to be treated and the size of the particles to be separated must be considered when determining the ceramic membrane to be utilized. This determines the membrane pore size units and the so-called cut-off.
What are ceramic membranes made of?
Ceramic membranes are mostly made at high sintering temperatures (1,800-2,000®C) using tabular alumina (Al2O3) and silicon carbide (SiC).

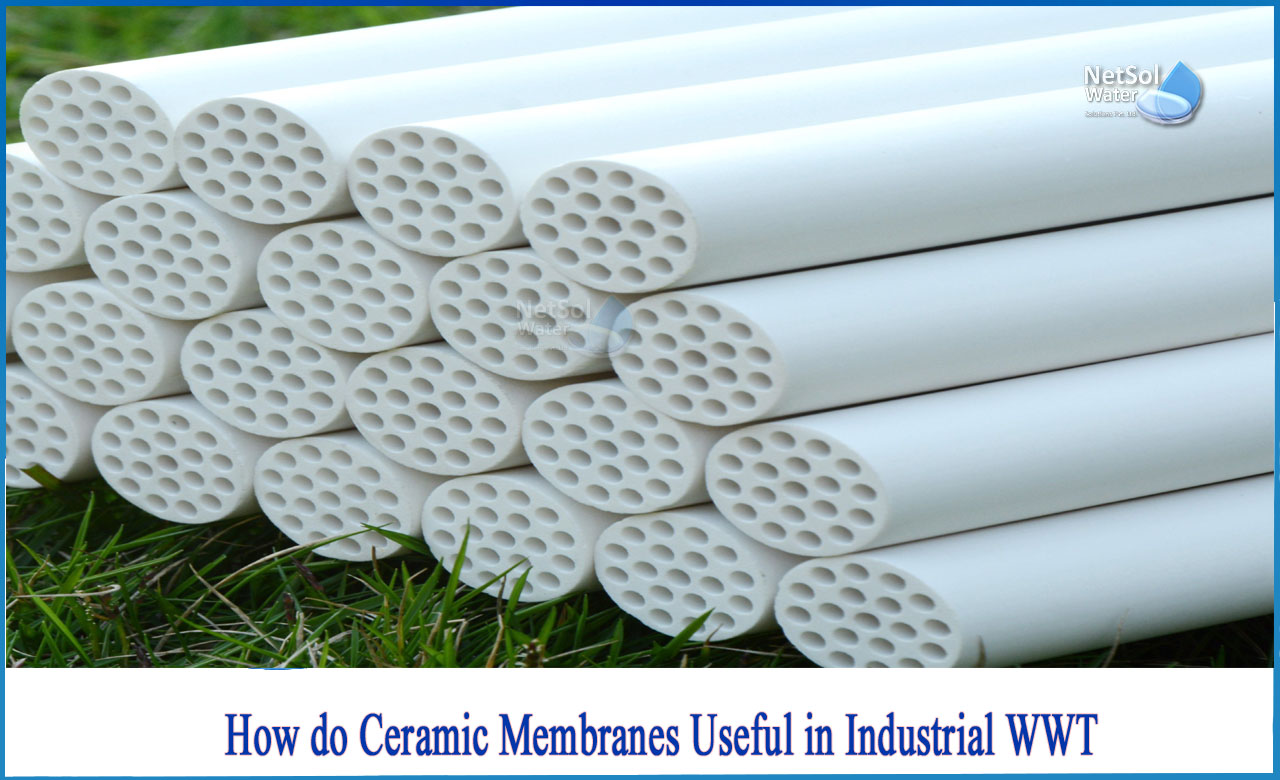

Although flat membrane variants are available for specialized uses, these membranes typically have a tubular form and varying designs based on the number of channels within them. Thus, for loaded or higher viscosity effluents, fewer membranes with wide channels are often utilized; however, for more fluid and less laden effluents, more membranes with smaller channels are typically employed. More channelled membranes have a bigger comparable filtering surface. The most dependable technique to design the facility to be implemented is to conduct pilot studies or trials with the liquid to be treated, as well as to test several membranes of potential usage.
The treatment membranes are contained under protected stainless-steel coverings with elastomer joints suited for the media and cleaning.
Ceramic membranes of different sections
To avoid clogging the membrane channels, the liquid to be filtered is pre-treated in a pre-filtration system. The liquid to be treated is supplied via the channels that run the length of the membrane. The permeate is obtained by passing the liquid through the walls of the channels and collecting it on the outside of the membrane. The concentrate remains in the channels and is recirculated by the loop.
They offer a wide range of wastewater uses. This sort of equipment has a rather high initial installation cost: in addition to the membranes, large recirculation pumping units are required to produce appropriate tangential speeds to make the process profitable.
Ceramic membrane applications
These membranes are mostly utilized in the following industries:
· Cutting fluid separation and recovery
· Fibre and additive separation and recovery in paper industry circuits
· Degreasing bath recovery and purification
· The paint business recovering
· Acid and alkali recovery in the metal industry
· Ink separation and recovery
· Solvent separation and recovery
· Separation and concentration of sugar effluents in sugar mills
· Product separation and concentration in the chemical industry
· Metal and additive separation and recovery in the electroplating business
With the number of so many advantages, ceramic membranes can prove very useful for various industrial sectors.
