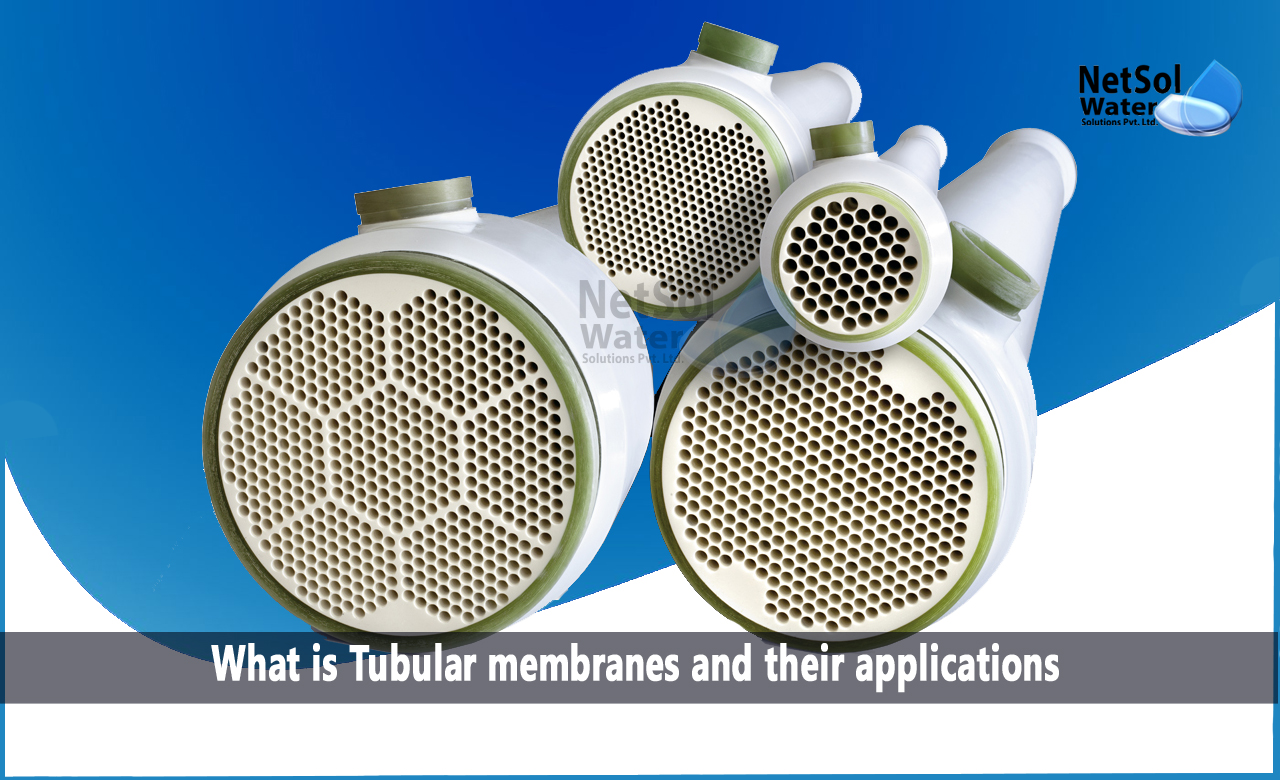

What is Tubular membranes and their applications?
Tubular membranes are a type of filtration membrane used in water and wastewater treatment processes. They consist of long, cylindrical tubes with a selective porous membrane that allows the passage of certain substances while retaining others. These membranes are widely used in various applications due to their versatility, efficiency, and reliability.
In this blog, we will explore tubular membranes in detail, including their construction, working principle, and common applications.
Construction of Tubular Membranes:
Tubular membranes are typically constructed with a support structure and a porous membrane layer. The support structure provides mechanical strength to the membrane, while the porous membrane layer acts as a barrier, allowing the separation of substances based on their size and molecular weight.
The support structure of tubular membranes can be made of various materials, including ceramics, metals, or polymers. Ceramic and metal tubular membranes are known for their durability and resistance to harsh conditions, making them suitable for applications involving high temperatures or corrosive environments. Polymer tubular membranes, on the other hand, offer flexibility, cost-effectiveness, and ease of manufacturing.
The porous membrane layer is responsible for the separation of substances. It can be made of different materials, including polymeric materials such as polyvinylidene fluoride (PVDF), polyethylene (PE), or polypropylene (PP). These materials have different pore sizes and surface properties, allowing for selective separation based on the size and charge of the molecules.
Working Principle of Tubular Membranes:
Tubular membranes work based on the principle of size exclusion or molecular sieving. The membrane pores have a specific size that allows the passage of certain molecules or particles while blocking larger substances. The separation process occurs when the water or wastewater is forced through the tubular membrane under pressure.
As the water passes through the membrane, smaller molecules such as water molecules, ions, and dissolved gases can pass through the pores, while larger particles such as suspended solids, bacteria, viruses, and macromolecules are retained. This selective separation allows for the purification or concentration of the desired substances.
Applications of Tubular Membranes:
Tubular membranes find applications in various industries and water treatment processes due to their versatility and efficiency. Some of the common applications of tubular membranes include:
1. Reverse Osmosis (RO):
Tubular membranes can be used in reverse osmosis systems for desalination processes. They effectively remove dissolved salts, minerals, and other contaminants from seawater or brackish water, producing high-quality drinking water or process water.
2. Ultrafiltration (UF):
Tubular membranes with larger pore sizes are used in ultrafiltration processes. UF membranes can effectively remove suspended solids, bacteria, viruses, and macromolecules from water, making them suitable for applications such as wastewater treatment, drinking water purification, and industrial process water treatment.
3. Microfiltration (MF):
Tubular membranes with even larger pore sizes are used in microfiltration processes. MF membranes can effectively remove suspended solids, bacteria, and some large particles from water. They are commonly used in applications such as pretreatment for RO systems, clarification of water, and removal of turbidity.
4. Nanofiltration (NF):
Tubular membranes with smaller pore sizes than UF membranes but larger than RO membranes are used in nanofiltration processes. NF membranes are effective in removing divalent ions, organic matter, and some smaller particles from water. They find applications in water softening, color removal, and selective removal of specific ions.
5. Industrial Processes:
Tubular membranes are utilized in various industrial processes for separation, purification, and concentration of specific substances. For example, they can be used in the dairy industry for the concentration of milk proteins, in the pharmaceutical industry for the purification of active pharmaceutical ingredients, and in the food and beverage industry for the removal of impurities, flavor compounds, and colorants.
6. Wastewater Treatment:
Tubular membranes play a crucial role in wastewater treatment processes. They can be used for the removal of contaminants such as suspended solids, organic matter, nutrients (nitrogen and phosphorus), and pathogens from wastewater. Tubular membranes are commonly employed in applications such as tertiary treatment, water reclamation, and decentralized wastewater treatment systems.
7. Biotechnology and Bioprocessing:
Tubular membranes are utilized in biotechnology and bioprocessing applications for the separation and concentration of biomolecules, enzymes, and microbial cells. They are used in processes such as protein purification, cell harvesting, fermentation, and bioseparations.
8. Oil and Gas Industry:
Tubular membranes find applications in the oil and gas industry for the treatment of produced water, which is the water extracted along with oil and gas during production. Tubular membranes can remove contaminants such as oil droplets, suspended solids, and dissolved ions from produced water, allowing for its safe disposal or reuse.
9. Electronics and Semiconductor Industry:
Tubular membranes are employed in the electronics and semiconductor industry for the purification of process water used in various manufacturing processes. The membranes can remove particulates, ions, and organic impurities from the water, ensuring the quality and reliability of the electronic components.
10. Agriculture and Irrigation:
Tubular membranes can be used in agriculture and irrigation systems for the treatment of water used for crop irrigation. They can remove contaminants, including sediment, bacteria, and viruses, ensuring the delivery of clean water to the crops and preventing the spread of waterborne diseases.
11. Groundwater Remediation:
Tubular membranes are utilized in groundwater remediation processes to remove contaminants such as volatile organic compounds (VOCs), heavy metals, and other pollutants. The membranes can effectively separate and concentrate the contaminants, facilitating their proper treatment and disposal.
12. Desalination of Brackish Water:
Tubular membranes can be employed in the desalination of brackish water sources, such as groundwater with elevated salt content. The membranes remove dissolved salts and other contaminants, producing freshwater for various applications.
13. Landfill Leachate Treatment:
Tubular membranes are used in the treatment of landfill leachate, which is the liquid that drains from landfills. The membranes can remove pollutants, including organic compounds, heavy metals, and other contaminants, ensuring the safe disposal or reuse of the treated leachate.
14. Textile and Dyeing Industry:
Tubular membranes find applications in the textile and dyeing industry for the treatment of wastewater generated during the manufacturing processes. The membranes can remove colorants, organic compounds, and other pollutants, allowing for the safe discharge of treated wastewater.
15. Research and Development:
Tubular membranes are also utilized in research and development activities for studying separation processes, developing new membrane materials, and optimizing filtration parameters. They serve as a valuable tool in understanding and improving membrane-based separation technologies.
Conclusion:
Tubular membranes are versatile filtration membranes used in a wide range of water and wastewater treatment applications. Their selective separation capabilities, efficiency, and reliability make them suitable for various industries and processes. From desalination and ultrafiltration to industrial processes and wastewater treatment, tubular membranes play a vital role in ensuring the availability of clean water, protecting the environment, and facilitating resource recovery.
