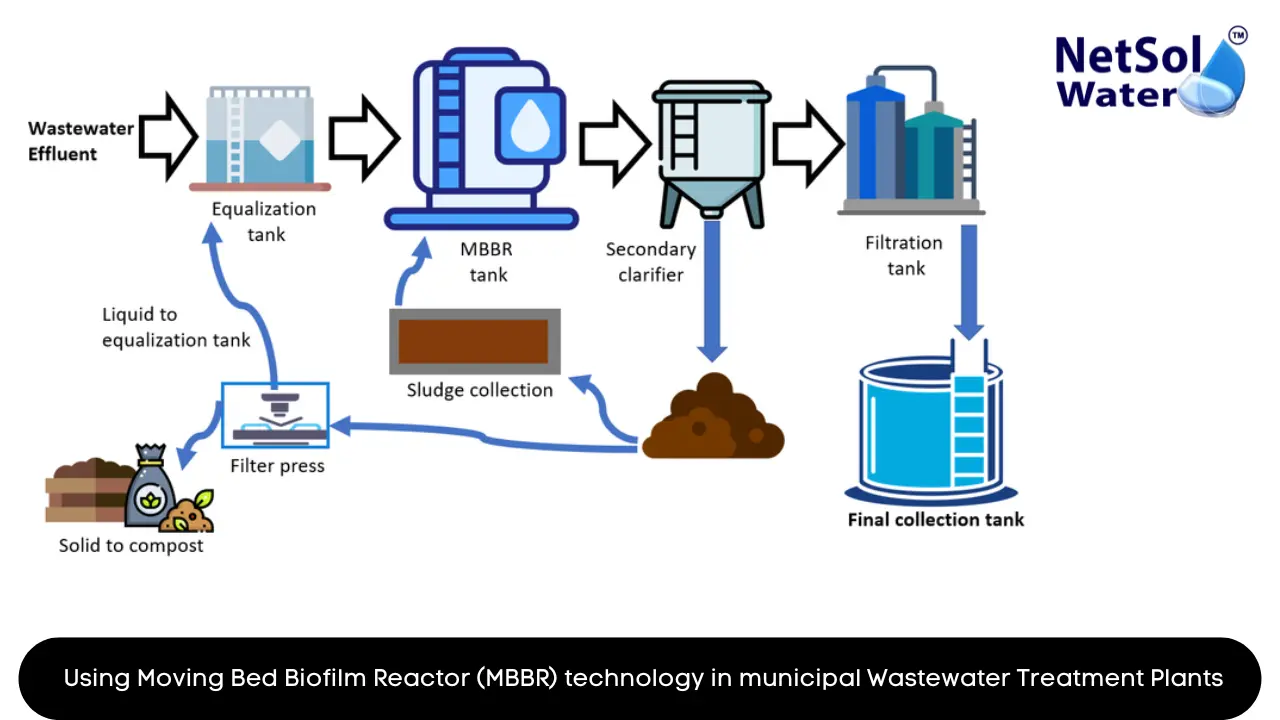

Using Moving Bed Biofilm Reactor (MBBR) Technology in Municipal Wastewater Treatment Plants

In the world of wastewater treatment, Moving Bed Biofilm Reactor (MBBR) technology is making a big difference. It's a smart and affordable solution for cities to clean up their wastewater. MBBR mixes the good parts of traditional systems with biofilm processes, making treatment more efficient, needing less space, and costing less to run. With cities working hard to follow strict environmental rules and handle more people's waste, using MBBR is becoming a popular choice.

Understanding MBBR Technology

MBBR is a type of wastewater treatment that uses a process called biofilm formation. It works by having a reactor filled with special carriers made of high-density polyethylene (HDPE) or polypropylene (PP). These carriers have a large surface area where microorganisms can grow. They're always moving around in the reactor, which helps the wastewater and biofilm connect well.

When wastewater enters the reactor, it mixes with the carriers and the biofilm on them. This biofilm is made up of different types of tiny organisms like bacteria, fungi, and protozoa. Together, they break down and remove organic matter, nutrients, and other pollutants from the wastewater.

Benefits of Implementing MBBR Technology

1. Improved Treatment Efficiency: MBBR technology offers superior treatment efficiency compared to conventional activated sludge systems. The increased surface area provided by the carriers allows for a higher concentration of biomass, resulting in enhanced removal of organic matter, nitrogen, and phosphorus.

2. Compact Footprint: MBBR systems require significantly less space compared to traditional treatment methods, making them ideal for municipalities with limited land availability or existing facilities with space constraints.

3. Operational Flexibility: MBBR technology is highly adaptable and can handle fluctuations in influent characteristics and flow rates, making it suitable for municipalities facing varying wastewater loads.

4. Energy Efficiency: MBBR systems consume less energy than conventional activated sludge systems, as they require less aeration and have lower sludge production, leading to reduced operational costs.

5. Resilience to Environmental Conditions: MBBR technology is less sensitive to temperature fluctuations and can operate effectively in a wide range of environmental conditions, ensuring consistent performance.

Design and Implementation Considerations

1. Reactor Configuration: MBBR systems can be designed as continuous or batch processes, with various reactor configurations available, including circular, rectangular, or vertical cylindrical tanks.

2. Carrier Selection: Choosing the appropriate carrier material and design is crucial for optimal biofilm growth and treatment efficiency. Factors such as surface area, density, and shape play a significant role in carrier selection.

3. Aeration and Mixing: Adequate aeration and mixing are essential for maintaining the motion of the carriers and ensuring proper oxygenation of the biofilm. Various aeration and mixing technologies can be employed, including diffused aeration, mechanical mixing, or a combination of both.

4. Process Control and Monitoring: Implementing robust process control and monitoring systems is crucial for optimizing the MBBR operation. Parameters such as dissolved oxygen, pH, temperature, and nutrient levels should be monitored and adjusted as needed.

5. Sludge Management: While MBBR systems produce less sludge compared to conventional activated sludge systems, proper sludge management strategies, including thickening, dewatering, and disposal, must be implemented.

Integration with Existing Treatment Facilities

MBBR technology can be integrated into existing wastewater treatment facilities in various ways, depending on the specific requirements and constraints of the municipality. Common integration approaches include:

1. Retrofitting: Existing treatment units can be retrofitted with MBBR technology, often by converting aeration tanks or adding dedicated MBBR reactors.

2. Hybrid Systems: MBBR can be combined with other treatment processes, such as activated sludge or membrane bioreactors, to create hybrid systems that leverage the strengths of multiple technologies.

3. Capacity Expansion: MBBR systems can be added as additional treatment stages to increase the overall capacity of an existing facility, addressing the needs of growing populations or stricter effluent regulations.

Operation and Maintenance Considerations

Proper operation and maintenance practices are crucial for ensuring the long-term performance and reliability of MBBR systems. Key considerations include:

1. Carrier Management: Regular inspection and replacement of damaged or worn carriers is necessary to maintain optimal biofilm growth and treatment efficiency.

2. Biofilm Control: Monitoring and controlling biofilm thickness is essential to prevent excessive growth, which can lead to clogging or reduced treatment efficiency.

3. Routine Maintenance: Preventive maintenance tasks, such as cleaning, inspecting, and replacing components like aeration equipment and instrumentation, should be performed regularly.

4. Operator Training: Providing comprehensive training to operators is vital for ensuring proper operation, troubleshooting, and maintenance of MBBR systems.

Conclusion

Using Moving Bed Biofilm Reactor (MBBR) technology in municipal wastewater treatment plants has many benefits. It improves how well the treatment works, takes up less space, gives more flexibility in how it's run, saves energy, and can handle different environmental conditions well. By thinking about how to design and set up MBBR carefully, adding it to existing facilities, and making sure it's operated and maintained right, municipalities can make the most of this new technology. As rules about the environment get tougher and more people need wastewater treatment, using MBBR can help cities treat wastewater in a way that's good for the environment and doesn't cost too much.
