Bar Screens and Grit Removal in Sewage Treatment Plants
In the initial stages of wastewater treatment, sewage treatment plants employ bar screens and grit removal systems to filter out large debris and inorganic solids. These preliminary treatment processes play a crucial role in protecting downstream equipment and ensuring efficient operations. By removing coarse materials and heavy particles, bar screens and grit chambers safeguard the plant's infrastructure and enhance the effectiveness of subsequent treatment stages.
· Bar Screens
Bar screens are the first line of defense in sewage treatment plants, intercepting and removing large objects and debris from the incoming sewage stream. These screens consist of parallel bars spaced at predetermined intervals, allowing water and smaller particles to pass through while trapping larger solids.
Types of Bar Screens:
1. Coarse Bar Screens: With bar spacing ranging from 25mm to 75mm, coarse screens capture large items such as rags, plastics, and branches that could potentially clog downstream equipment.
2. Fine Bar Screens: Featuring smaller bar spacing, typically between 6mm and 25mm, fine screens are designed to remove smaller debris and solids, enhancing the overall screening process.
Bar Screen Materials:
Bar screens can be constructed from various materials, including stainless steel, carbon steel, or reinforced concrete. The choice of material depends on factors such as corrosion resistance, durability, and the specific requirements of the sewage plant.

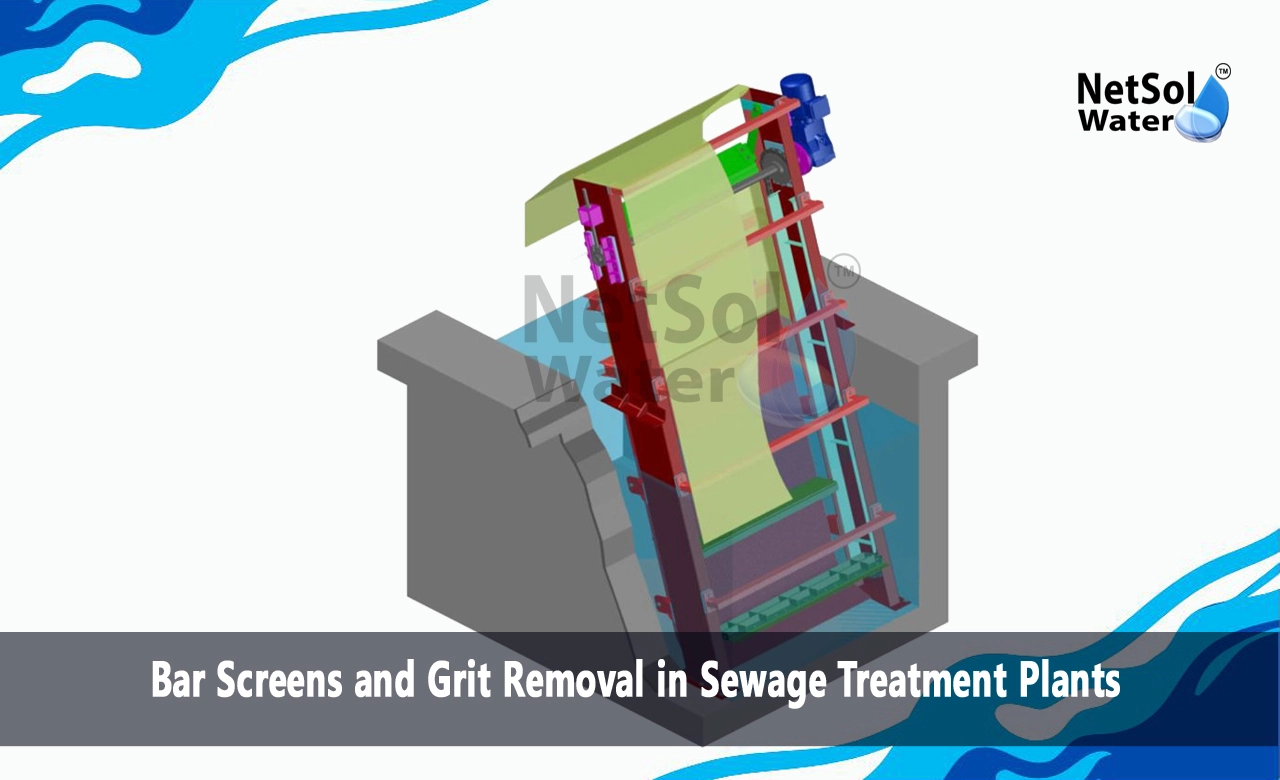

Bar Screen Operation:
Bar screens can operate either manually or automatically. Manual screens require periodic raking or cleaning by plant personnel, while automatic screens are equipped with mechanical raking systems that continuously remove accumulated debris. Automated systems enhance efficiency and reduce labor requirements.
Screenings Handling:
The solids and debris removed by the bar screens, known as screenings, must be properly handled and disposed of. This can involve compact, dewatering, or transportation to landfills or incineration facilities, depending on the local regulations and available resources.
· Grit Removal
After the initial screening process, sewage plants employ grit removal systems to separate and remove inorganic solids, such as sand, gravel, and other heavy particles, from the wastewater stream. These solids can cause abrasion and damage to downstream equipment, such as pumps and pipelines, if not removed.
Grit Chambers:
Grit chambers are specially designed tanks or basins where the sewage flow is slowed down, allowing heavier particles to settle out while lighter organic solids remain suspended. The settled grit is then collected and removed from the chamber.
Types of Grit Chambers:
1. Aerated Grit Chambers:
2. Vortex Grit Chambers:
Grit Removal Mechanisms:
Various mechanisms can be employed for grit removal, including chain-and-bucket systems, screw conveyors, or suction pumps. These mechanisms collect the settled grit from the bottom of the chamber and transport it for further processing or disposal.
Grit Processing:
The removed grit typically undergoes additional processing, such as washing and dewatering, to separate any organic matter and reduce its moisture content. This process facilitates proper disposal or potential beneficial reuse of the grit material.
Maintenance and Considerations
Bar Screens and Grit Removal Systems require regular maintenance and monitoring to ensure optimal performance and prevent operational issues. Some key considerations include:
1. Routine inspections and cleaning of bar screens to prevent clogging and blockages.
2. Monitoring and adjusting grit chamber flow rates and detention times for efficient grit separation.
3. Proper handling and disposal of screenings and grit to comply with environmental regulations.
4. Addressing potential odor issues associated with the accumulated solids.
5. Implementing appropriate safety measures for personnel involved in maintenance and cleaning activities.
Conclusion
Bar screens and grit removal systems are integral components of sewage treatment plants, playing a vital role in protecting downstream equipment and enhancing the overall efficiency of the treatment process. By removing large debris, plastics, and heavy inorganic solids, these preliminary treatment stages ensure smoother operations and prevent potential damage to pumps, pipelines, and other critical infrastructure.
Effective bar screening and grit removal not only safeguard the plant's assets but also contribute to improved treatment outcomes and environmental compliance. Regular maintenance, appropriate solids handling, and continual optimization of these systems are essential for sewage plants to operate effectively and responsibly.
As communities prioritize sustainable wastewater management and environmental stewardship, the importance of robust bar screening and grit removal processes will only continue to grow, ensuring a cleaner and healthier environment for generations to come.
